LED vs HPS Greenhouse Lighting: Energy, Heat & ROI

Key Takeaways

HPS has supported commercial greenhouse production for decades, while horticultural LED performance, controls and costs have changed rapidly. That history makes simple internet comparisons unreliable. Nelson and Bugbee’s 2014 measurements, for example, found the best tested double-ended HPS and LED fixtures then had similar PPE, while older mogul-base HPS was much less efficient. The result is a useful warning: compare the actual equipment available for the project, using current test reports.

Before comparing technology, define the crop’s PPFD and DLI requirement. A lower-watt fixture is not an energy-saving solution if it delivers less usable light or creates unacceptable nonuniformity.

What Is the Practical Difference Between LED and HPS Greenhouse Lighting?

LED offers higher potential photon efficacy, fast dimming, controllable distribution and longer service intervals; HPS offers a familiar installed base and more radiant heat directed toward the crop. Neither advantage can be valued without the greenhouse climate and production plan.

DLC’s Horticultural Technical Requirements V4.0 require at least 2.5 µmol/J PPE for listed LED products and report lifetime, electrical and controllability data. That threshold is a qualification reference, not proof that a fixture will produce the required canopy map in a particular greenhouse.

How Should an LED vs HPS Greenhouse Comparison Be Normalized?

Compare equal crop-level photon delivery over the same planted boundary and operating schedule. First require verified fixture PPF and PPE; then model distribution, spacing, obstructions, edges and dimming.

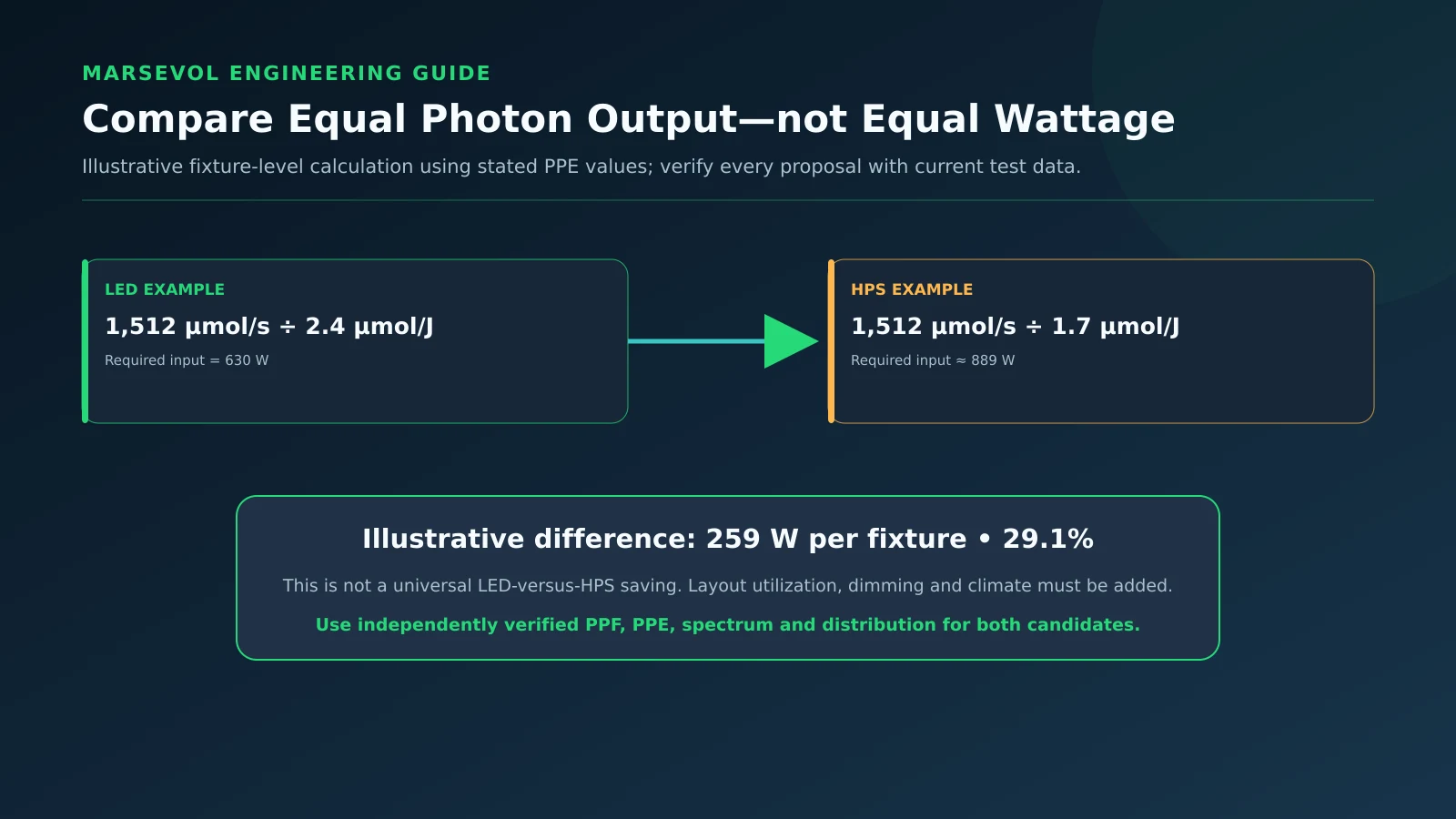

The example holds fixture output at 1,512 µmol/s. At 2.4 µmol/J, input is 630 W; at an illustrative 1.7 µmol/J, input is about 889 W. The 29.1% difference is not a universal retrofit saving. A different HPS generation, LED product, spectrum, output tolerance or layout-utilization factor changes it.

Run both candidates through the same greenhouse lighting layout method and compare average, minimum and maximum PPFD plus PPFD uniformity. If one proposal needs more fixtures, that quantity belongs in the power and capital model.

How Much Lighting Electricity Could LED Save?

Annual lighting electricity is connected load multiplied by actual operating hours at each output level. A full-power hours estimate is acceptable for screening, but interval data from the HPS system and a simulated LED dimming profile are better.

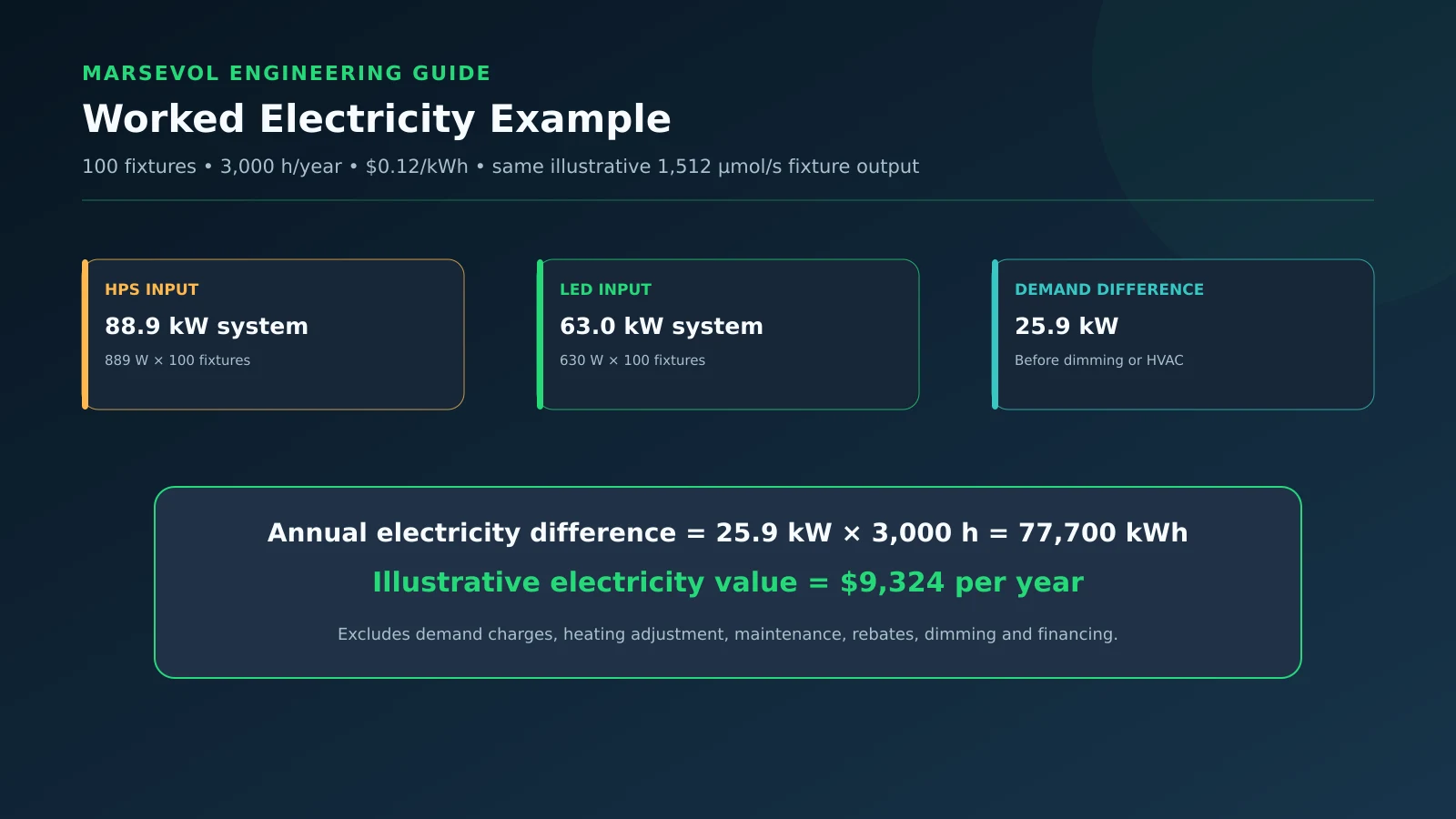

Using the equal-output example above, 100 HPS fixtures draw about 88.9 kW and 100 LED fixtures draw 63.0 kW. Across 3,000 hours, the difference is 77,700 kWh, worth $9,324 at $0.12/kWh. Replace every assumption with the project’s tariff and measured schedule. Also examine DLI-based lighting control: savings from dimming on bright days are separate from fixture PPE savings.

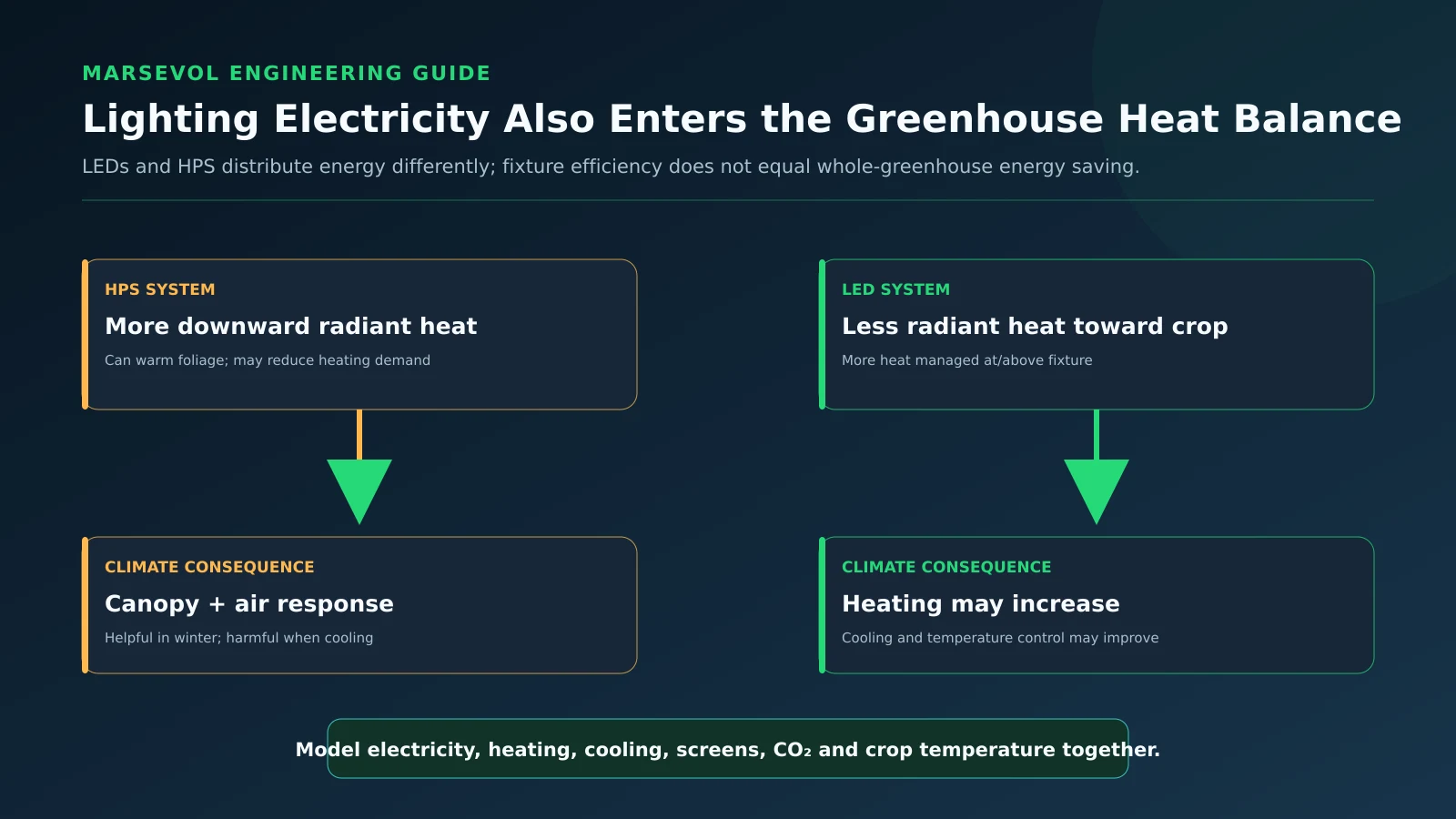

How Does Replacing HPS with LED Change Greenhouse Heat?

An LED retrofit normally reduces lighting electricity and downward radiant heat, but may increase space-heating demand in cold conditions. It can also lower unwanted canopy heating and cooling demand during mild or sunny conditions.

MSU Extension notes plants are often 2–3°F warmer under HPS than LED in the compared conditions, so heating inputs may need to increase under LED. Katzin, Marcelis and van Mourik modeled climates from subtropical China to arctic Sweden. In their scenarios, LED reduced lighting energy by 40%, increased heating demand, and produced total energy savings of 10–25% in most cases. Those are model results with defined lamps and greenhouse assumptions—not a guarantee for another site.

The retrofit model should include local hourly weather, heating source and price, boiler efficiency, screens, ventilation, CO₂ strategy, crop temperature targets and cooling constraints. Treat HPS heat as a co-product whose value can be positive, zero or negative depending on time.

How Do You Calculate LED Retrofit ROI?

Calculate cash flow from the incremental installed cost and all annual differences between the LED and HPS cases. Do not divide fixture purchase price by electricity savings alone.

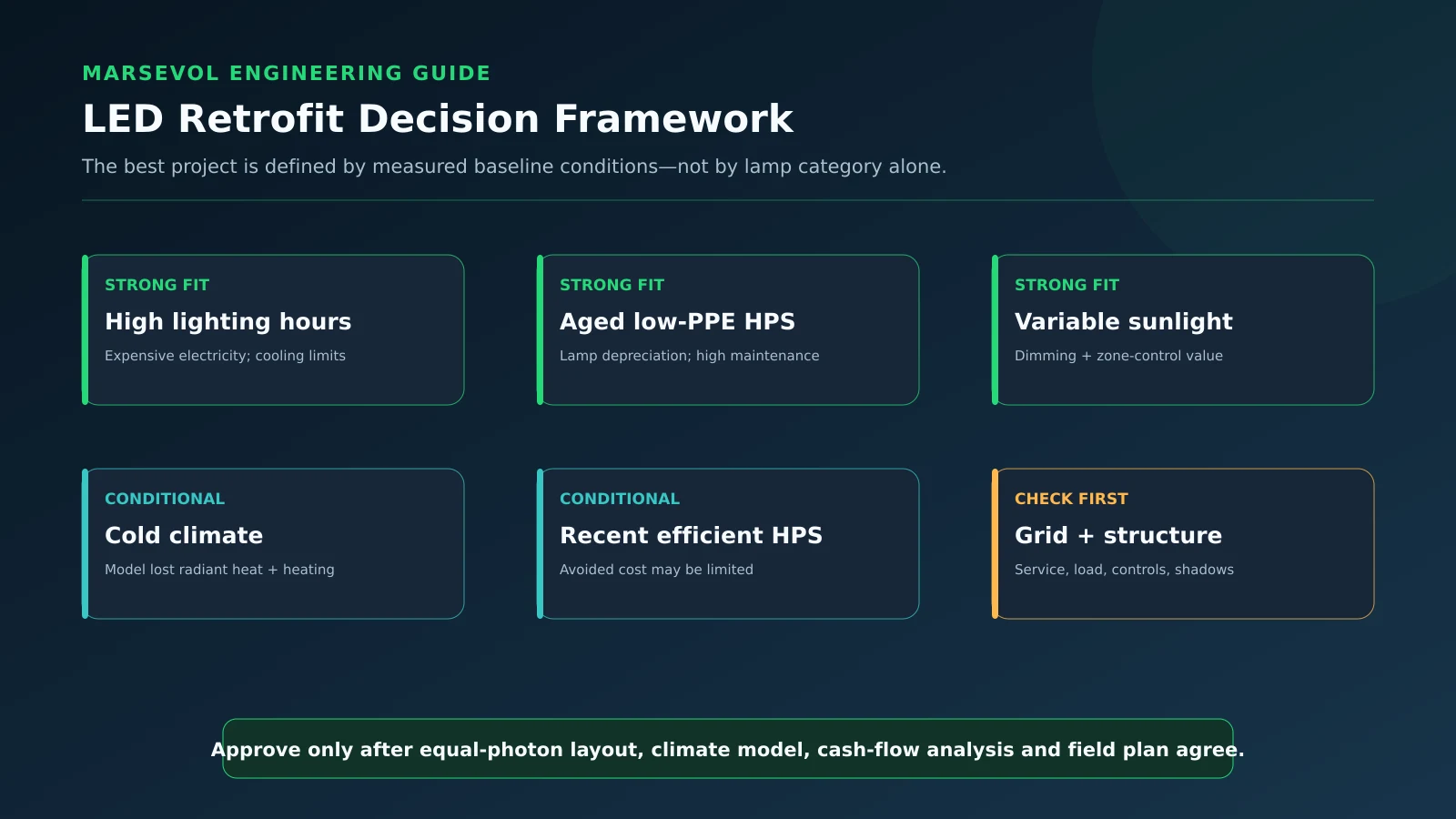

When Is an LED Greenhouse Retrofit Most Compelling?

The case is strongest where lighting hours and electricity costs are high, HPS equipment is aging, cooling or electrical capacity is constrained, and sunlight-responsive dimming has real value. It is more conditional where HPS is recent and efficient or winter heat is consistently valuable.

A staged approach can reduce risk: survey the HPS baseline, design an equal-photon LED trial bay, connect representative zones to the intended 0–10V and zone-control architecture, measure canopy PPFD and energy, observe crop and climate response, then update the financial model before full rollout.

What Should Be Checked in an LED vs HPS Proposal?

A credible proposal makes every technical and financial boundary visible. Ask for:

1. Current independent PPF, PPE, spectrum, distribution, input power and power quality.
2. The exact crop boundary, target supplemental PPFD/DLI, photoperiod and uniformity metric.
3. Fixture count, mounting height, spacing, edge treatment, obstructions and full PPFD map.
4. Hourly or scenario-based dimming logic, sensor placement, zone count and fallback state.
5. Electrical one-line, circuit loading, inrush, controls, structural load and service access.
6. Heating/cooling assumptions and sensitivity to weather and energy prices.
7. Installed-cost breakdown, warranty, maintenance plan and discounted cash flow.
8. A commissioning plan with canopy-level measurement and acceptance criteria.

For MarsEVOL’s current greenhouse fixture form and verified published nameplate data, review SOLIFY PRO. Product data still must be translated into a project-specific layout and operating case.

Common LED vs HPS Greenhouse Comparison Mistakes

Comparing wattage instead of delivered photons

Lower wattage can mean lower light. Normalize PPF, canopy PPFD/DLI and planted area first.

Using an old HPS benchmark as every HPS system

Single-ended, double-ended, ballast and reflector condition materially change performance. Measure the installed baseline.

Claiming LEDs produce no heat

Electrical energy still enters the greenhouse energy balance. What changes is efficiency, spectral output and where heat and radiation are delivered.

Ignoring dimming and daylight variability

A static full-power comparison misses one of LED’s main operational advantages.

Counting generic yield improvement in ROI

Crop response depends on total light, spectrum, climate and management. Monetize production gains only after credible trial evidence.

Using simple payback as the only investment metric

Simple payback ignores discount rate, cash-flow timing, replacement cycles and residual value. Add NPV, IRR and sensitivity analysis.

FAQ: LED vs HPS Greenhouse Lighting

Does LED always use less electricity than HPS?

Not automatically. It uses less only when the complete LED system supplies the required photons with lower electrical input across the real operating schedule.

Can LED replace HPS one for one?

Sometimes, but fixture output alone is insufficient. Confirm distribution, mounting, uniformity, electrical compatibility, controls and crop-level PPFD.

Will a greenhouse need more heating after switching to LED?

It may during heating periods because HPS supplies more radiant heat toward the canopy. Quantify the effect with local climate and heating-system data.

Is PPE the same as crop efficiency?

No. PPE is fixture photons per joule. Crop results also depend on spectrum, distribution, capture, DLI, climate and crop management.

What is a reasonable LED payback period?

There is no universal period. It depends on installed cost, hours, tariff, baseline HPS performance, heating/cooling, maintenance, incentives and financing.

Should an old HPS system be replaced immediately?

Not solely because it is HPS. Audit its output, energy, maintenance and remaining value, then compare replacement now with staged or end-of-life options.

MarsEVOL Perspective: Design the Retrofit as a System

MarsEVOL treats an HPS-to-LED decision as a greenhouse system project: crop light target → measured HPS baseline → verified LED data → layout and uniformity → electrical and structural review → climate interaction → controls → commissioning → cash flow. The MarsEVOL greenhouse solution process can connect SOLIFY fixture selection with layout simulation and control recommendations; it should never replace site-specific engineering or financial review.

Conclusion

LED can provide a strong greenhouse upgrade, but the defensible case is not “LED is newer.” It is a verified reduction in energy and operating risk while meeting the same crop-light requirement. Compare equal photons, model the whole greenhouse heat balance, value dimming and maintenance, test the layout, and calculate project cash flow with transparent assumptions.
