2.8 μmol/J Light Efficacy
Higher efficacy across three power options for controlled environments.
PARSYS MAX is an adjustable, foldable multi-bar LED fixture for high-intensity indoor cultivation. The family offers 720 W, 800 W and 1000 W configurations at 2.8 μmol/J, with 0–10V dimming and a foldable frame.
6 available model configurations. Select by market, spectrum and input voltage.
| Model | Power | PPF (μmol/s) | PPE (μmol/J) | Spectrum | Input Voltage | Market |
|---|---|---|---|---|---|---|
| 514-0001 | 720 W | 2016 | 2.8 | FS-Flow | 200–240 VAC | Europe |
| 514-0002 | 800 W | 2240 | 2.8 | FS-Flow | 200–240 VAC | Europe |
| 514-0003 | 1000 W | 2800 | 2.8 | FS-Flow | 200–240 VAC | Europe |
| 514-0004 | 720 W | 2016 | 2.8 | FS-Flow | 100–277 VAC | North America |
| 514-0005 | 800 W | 2240 | 2.8 | FS-Flow | 100–277 VAC | North America |
| 514-0006 | 1000 W | 2800 | 2.8 | FS-Flow | 100–277 VAC | North America |
Higher efficacy across three power options for controlled environments.
Foldable frame facilitates transport and installation.
Dimmable drivers support compatible controls.
Protected mechanical design backed by manufacturer warranty.
Select rated power using lighting layout simulations, crop targets, fixture distance and cooling capacity.
Explore Lighting Solutions ↗Review complete model-specific dimensions and spectral options before project selection.

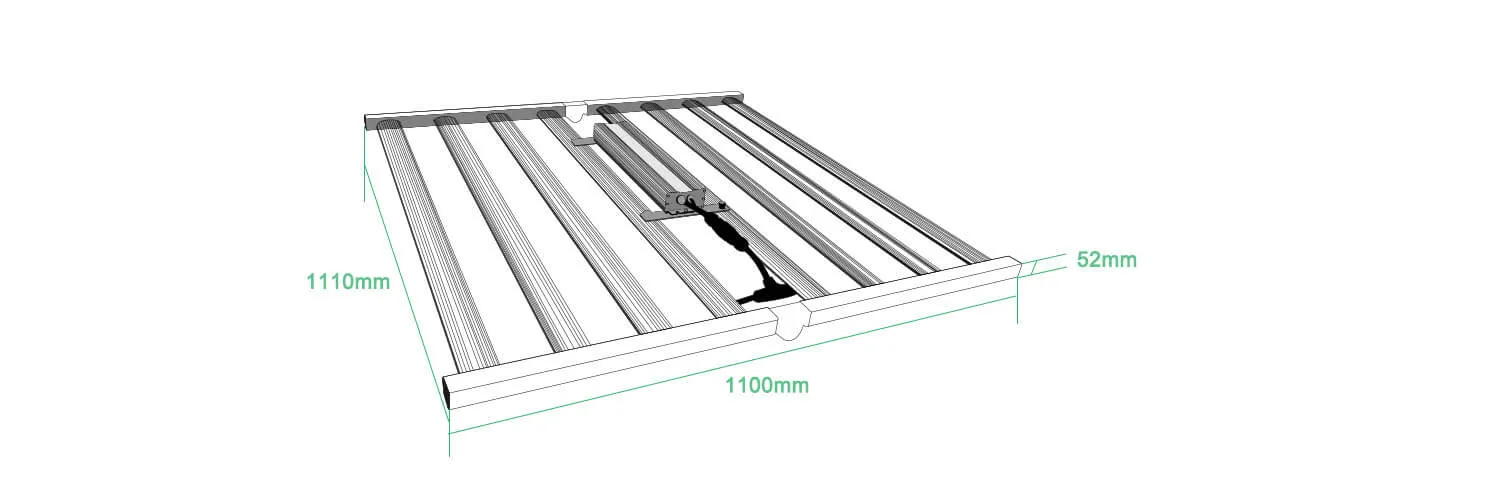

Mounting and original fixture dimensions.

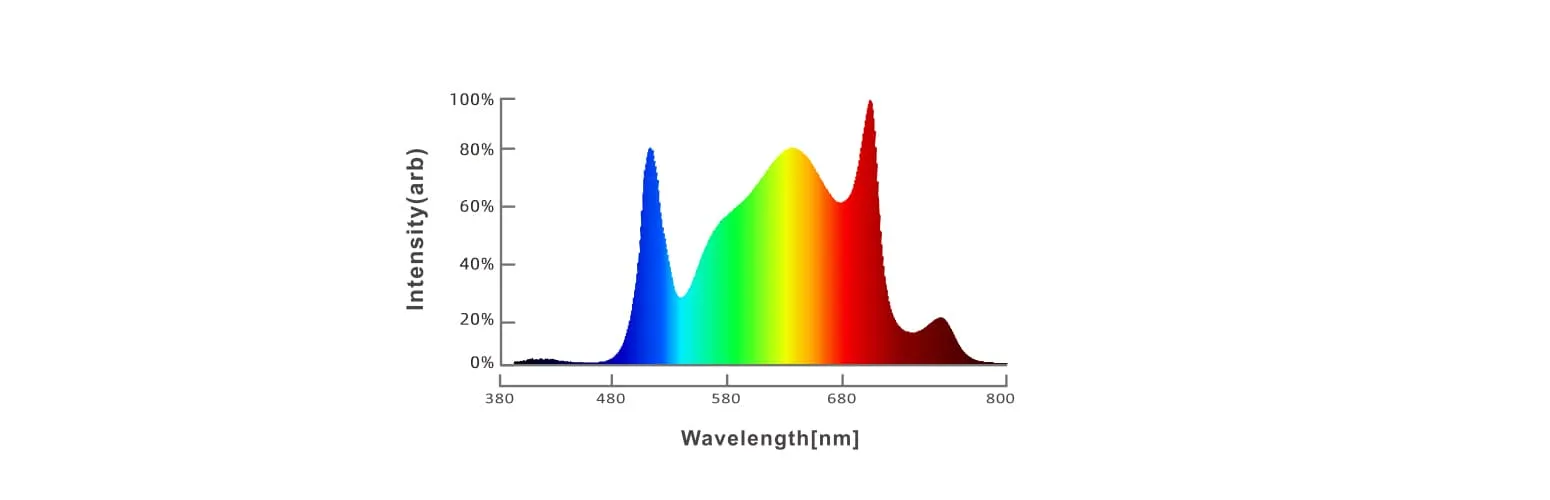

Manufacturer spectrum reference for design selection.
Explore DLI-oriented multi-zone control for compatible grow-lighting projects.
Tell us your growing area, crop and target PPFD / DLI. Our team can help you choose the appropriate PARSYS MAX model and prepare the lighting proposal.
