Specialized UV Output
UV light output is not interchangeable with photosynthetic LED lighting.

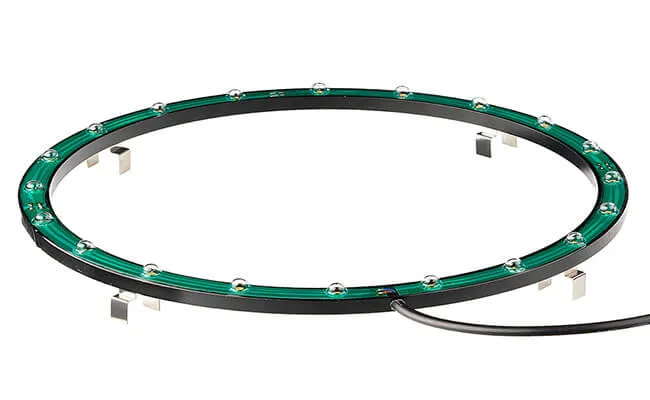

PARSYS RING is a specialized 5 W horticultural UV ring fixture with a nominal 270–280 nm spectral range. Unlike conventional photosynthetic grow lights, it requires application-specific operation and appropriate UV safety precautions.
1 model configurations. Select by market, spectrum and voltage.
| Model | Power | PPF (μmol/s) | PPE (μmol/J) | Spectrum | Input Voltage | Market |
|---|---|---|---|---|---|---|
| 468-0002 | 5 W | — | — | 270–280 nm UV | 100–277 VAC | North America |
UV light output is not interchangeable with photosynthetic LED lighting.
290 mm overall diameter with specified mounting clips.
Protection rating for the listed product family.
Use qualified UV safety procedures and verify two-year manufacturer warranty terms.
Follow manufacturer operation and UV safety instructions, apply a site-specific exposure risk assessment and verify all installation requirements before use.
Explore Lighting Solutions ↗Review original manufacturer dimensions and spectral information before selecting a model.

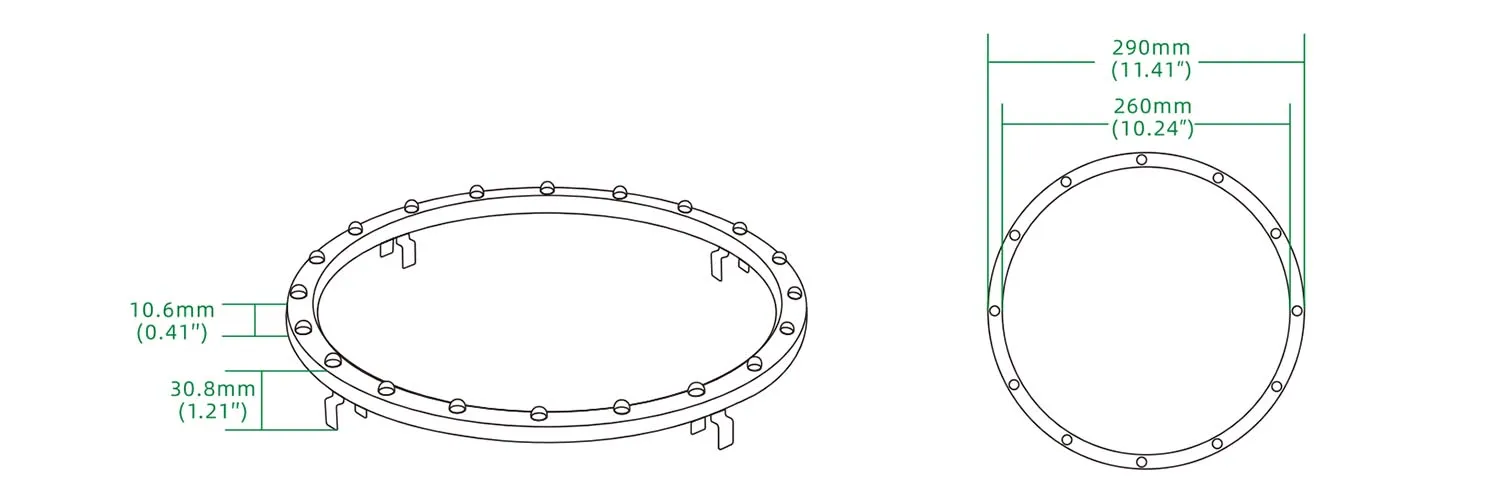

Original mechanical dimensions and mounting information.
Specialized UV output; consult safety guidance before use.

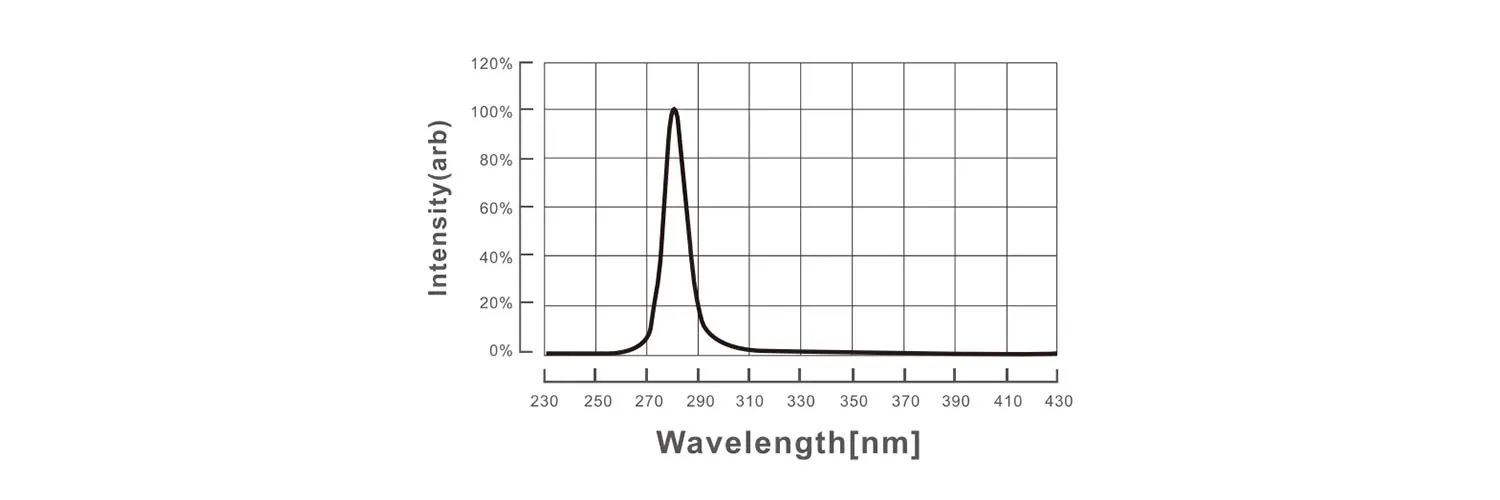

UV spectral curve redrawn for legibility from the manufacturer's catalogue; refer to the original spec sheet for technical approval.
Request manufacturer UV operation and safety instructions.
Tell us about your specialized UV project and model requirements. Our team can provide PARSYS RING specification and layout support.
